LED Wall at Forever Mark 2018

LED Wall at Forever Mark 2018

LED Wall and LED Gate Wall

CLIENT BRIEF

Event – LED Wall Requirement for Forever Mark 2018

Venue – Pullman Hotel, Aerocity      Date – 9th AND 11th July 2018

The seventh edition of the Forevermark Forum hosted by Forevermark India in New Delhi, from July 9-11, 2018, came to a conclusion after a few days of insightful talks, keen discussions and vast networking opportunities.
Organised around the theme ‘The Future Is Now’, the Forum participants, comprising over 600 retailers from across the country discussed diversity in thought, culture, design, and innovation in a multi-faceted future brimming with diverse opportunities.

Forevermark equips partners with the newest retail innovations, latest technology and consumer insights to help them leverage their business better and stay ahead of the consumer curve, Existing and prospective partners are informed about new research and other tools through which they can successfully connect and convert consumers.


We had Sophia the Robot as a special guest at our Forum 2018. Sophia is Hanson Robotics’ most advanced human-like robot, created by combining breakthrough innovations in robotics, AI and artistry.
As part of “Knowledge Series” Ronnie Screwvala – UTV and The Swades Foundation – Media Pioneer and Entrepreneur and Abheek Singhi – The Boston Consulting Group- Senior Partner & Managing Director addressed the Forum.

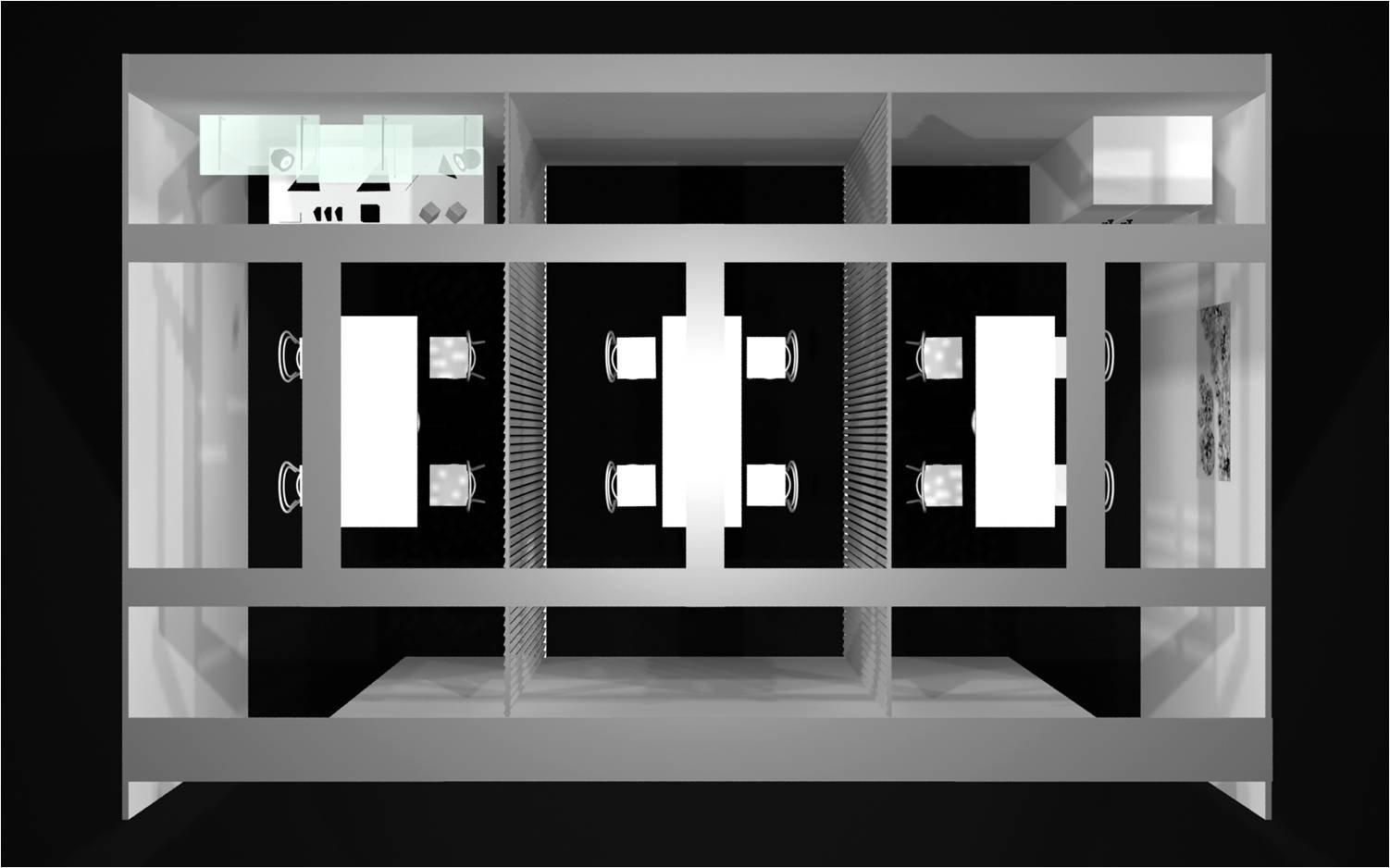

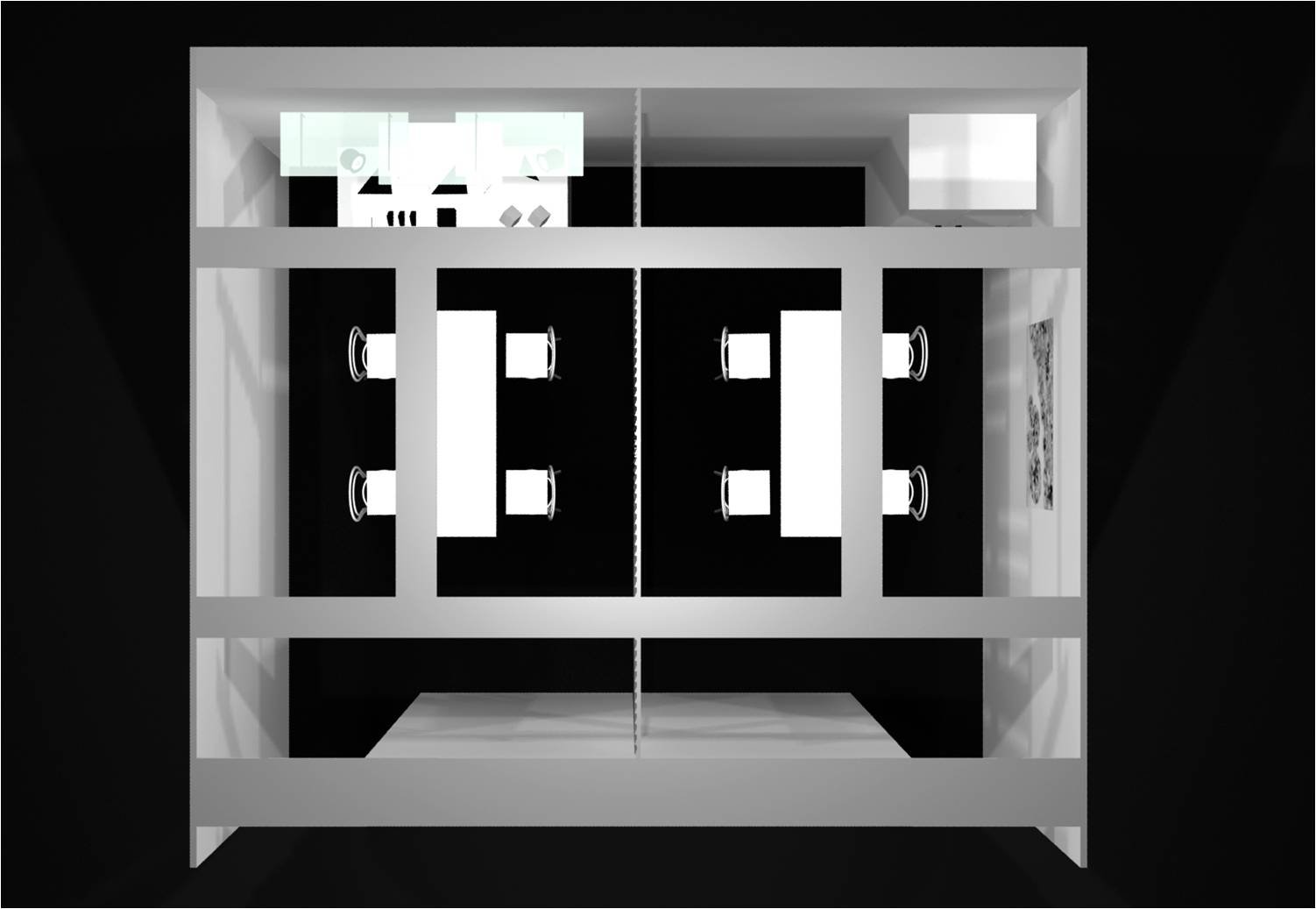

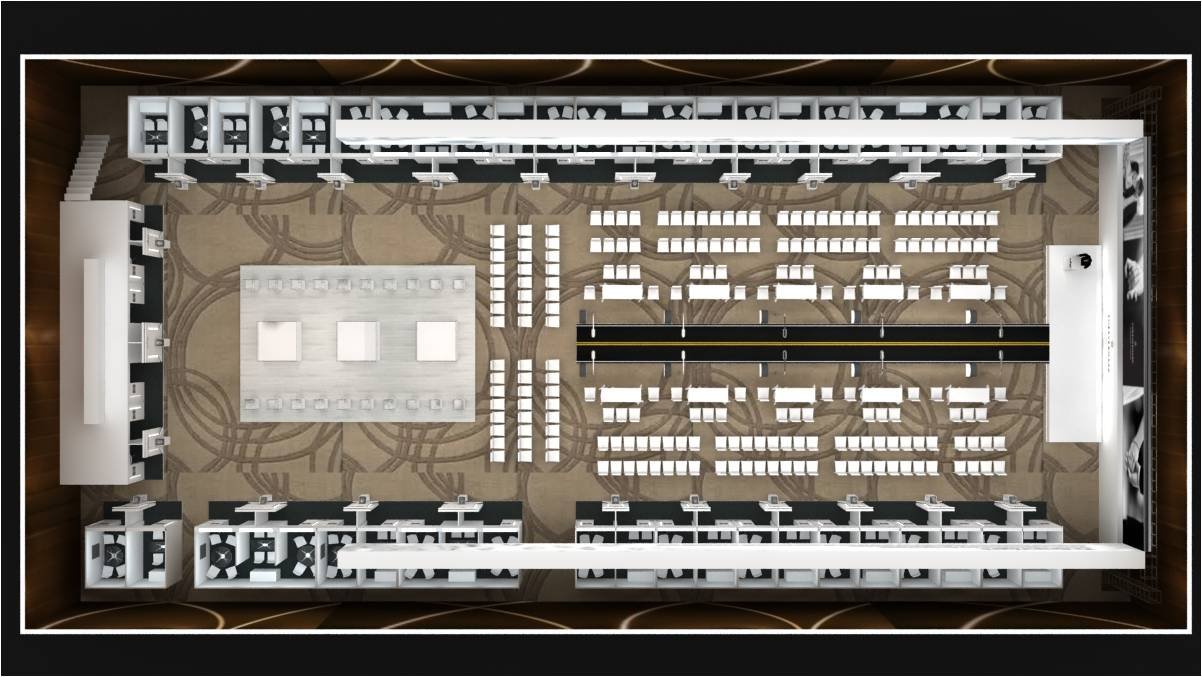

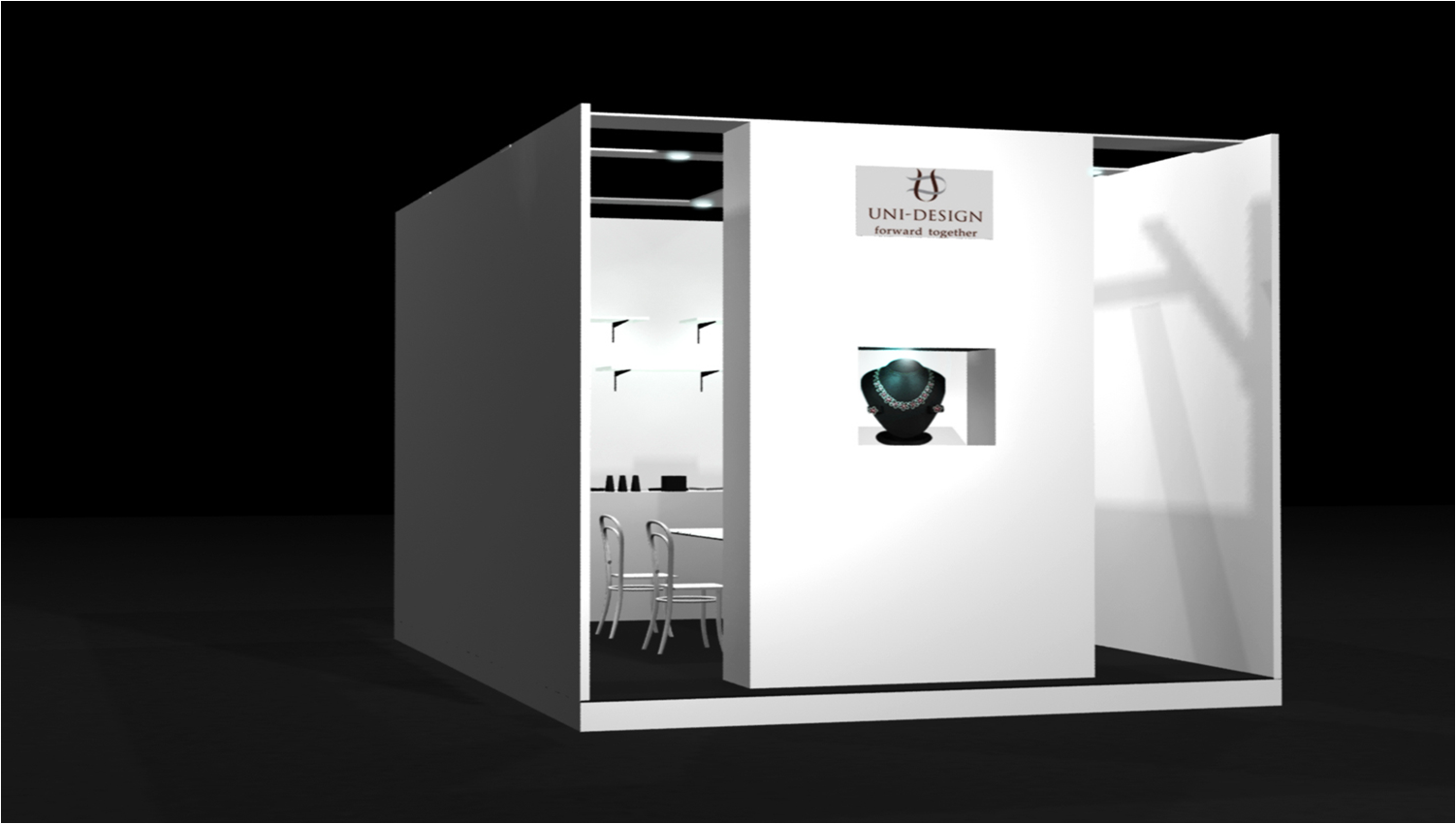

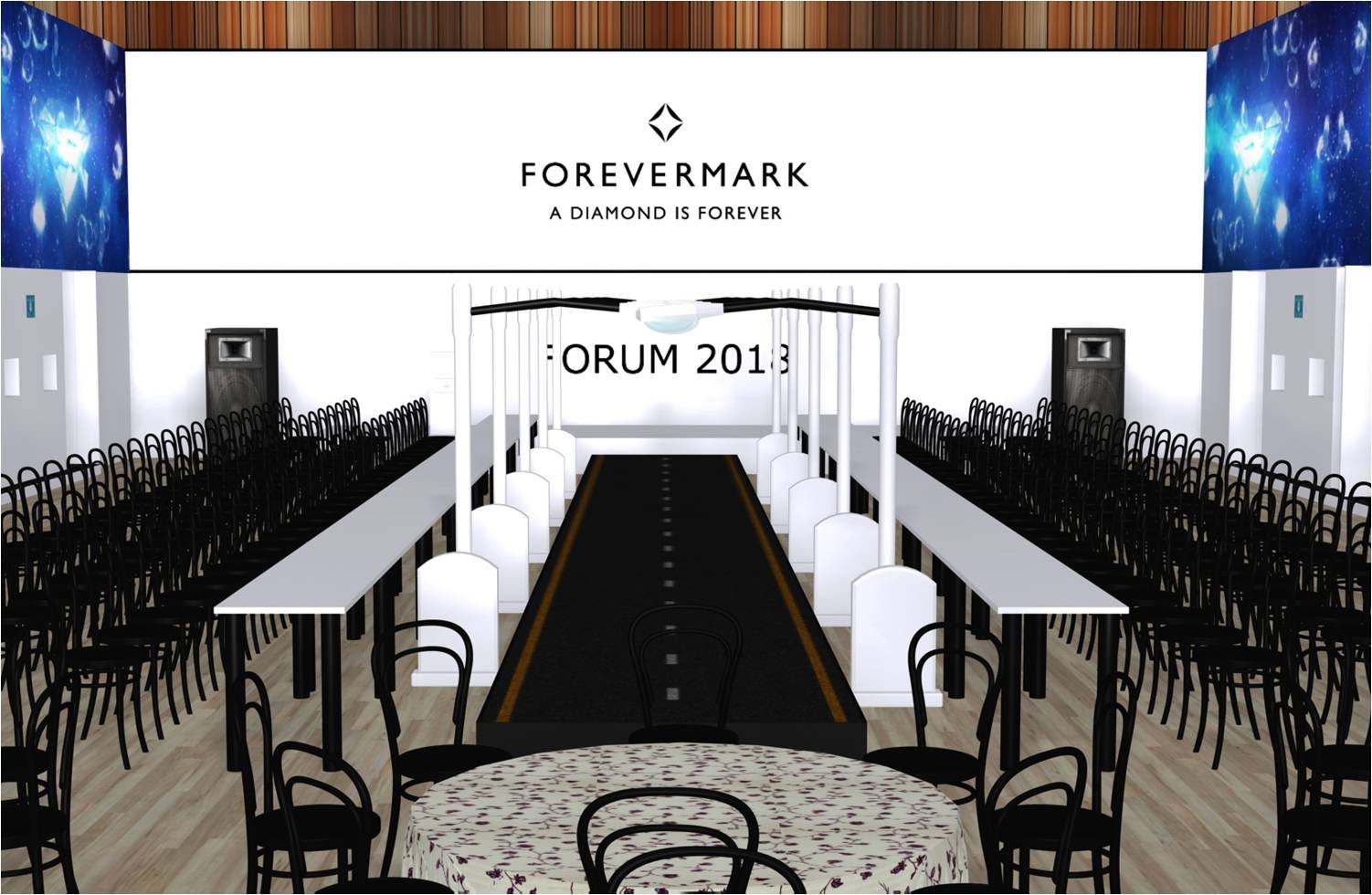

LAYOUTS

LED Drawings
LED Drawings
LED Drawings
LED Drawings
LED Drawings
LED Drawings

AV EQUIPMENT SUPPLIED BY SHIVAM VIDEO

LED Drawings

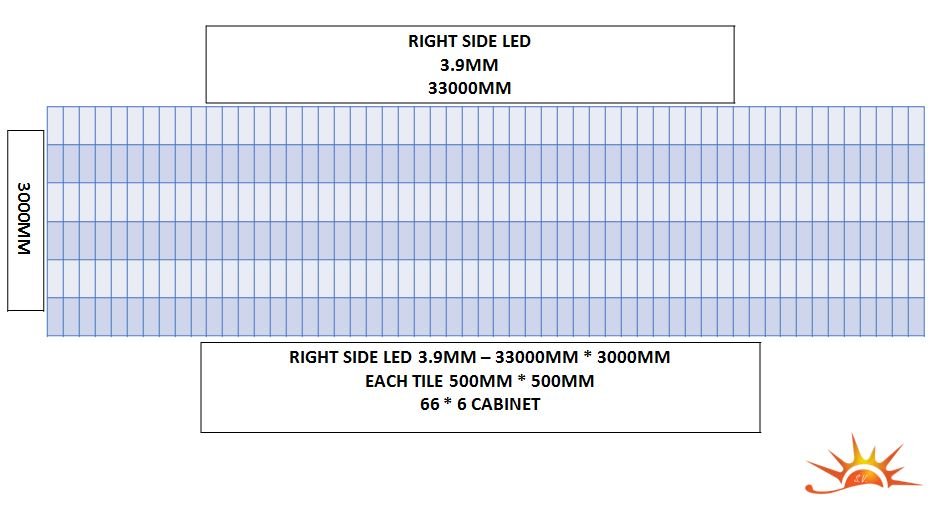

RIGHT SIDE LED 3.9MM

1.64’ * 1.64’ – Each Tile Size in Feet ( Each Tile Weight Approx. 12kg)

500mm * 500mm – Each Tile Size in mm.

Pixels per Tile – 128 * 128

Total LED Size – 108.26’ * 9.84’ – in Feet

Total LED Size – 33000 * 3000 – in mm

Total Tiles used – 66 no. in width * 6 no. in height

Total pixels – 8448 * 768

Total LED panels – 396 no.

Total weight (Approx. 4752 kg)

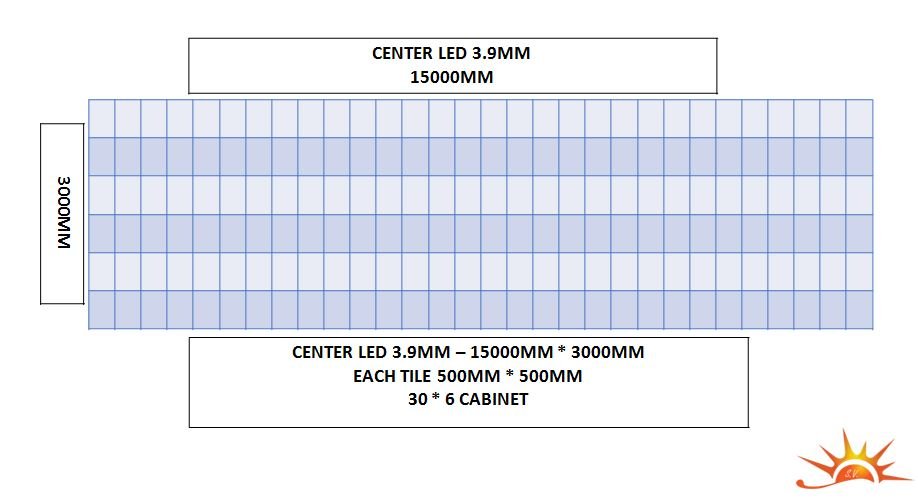

CENTER LED 3.9MM

1.64’ * 1.64’ Each Tile Size in Feet ( Each Tile Weight Approx. 12kg)

500mm * 500mm Each Tile Size in mm.

Pixels per Tile 128 * 128

Total LED Size 49.21’ * 9.84’ – in Feet

Total LED Size 15000 * 3000 – in mm

Total Tiles used 30 no. in width * 6 no. in height

Total pixels 3840 * 768

Total LED panels 180 no.

Total weight (Approx. 2160 kg)

LED Drawings
LED Drawings

PRE FUNCTION AREA LED  3.9MM

1.64’ * 1.64’ – Each Tile Size in Feet ( Each Tile Weight Approx. 12kg)

500mm * 500mm – Each Tile Size in mm.

Pixels per Tile – 128 * 128

Total LED Size – 14.76’ * 9.84’ – in Feet

Total LED Size – 4500 * 3000 – in mm

Total Tiles used – 9 no. in width * 6 no. in height

Total pixels – 1152 * 768

Total LED panels – 54 no.

Total weight (Approx. 648 kg)

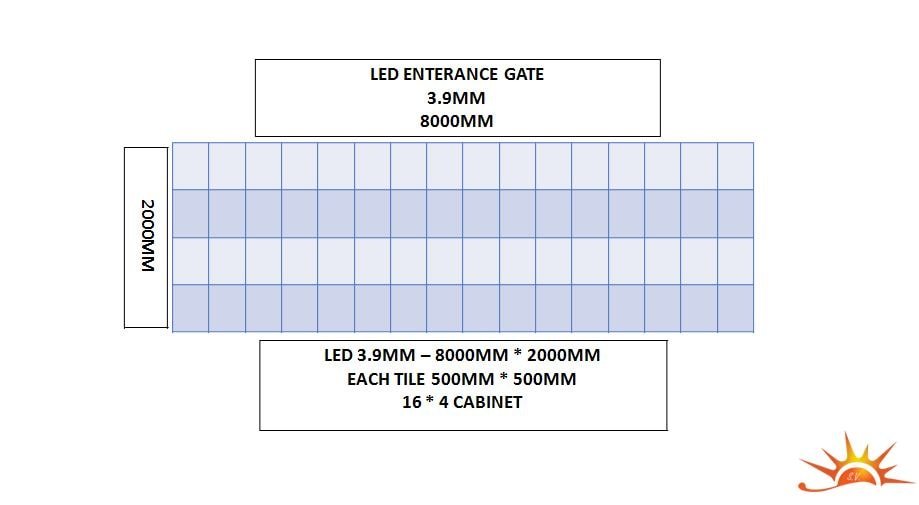

LED ENTERANCE GATE 3.9MM

1.64’ * 1.64’ – Each Tile Size in Feet ( Each Tile Weight Approx. 12kg)

500mm * 500mm – Each Tile Size in mm.

Pixels per Tile – 128 * 128

Total LED Size – 26.24’ * 6.56’ – in Feet

Total LED Size – 8000 * 2000 – in mm

Total Tiles used – 16 no. in width * 4 no. in height

Total pixels – 2048 * 512

Total LED panels – 64 no.

Total weight (Approx. 768 kg)

LED Drawings
LED Drawings

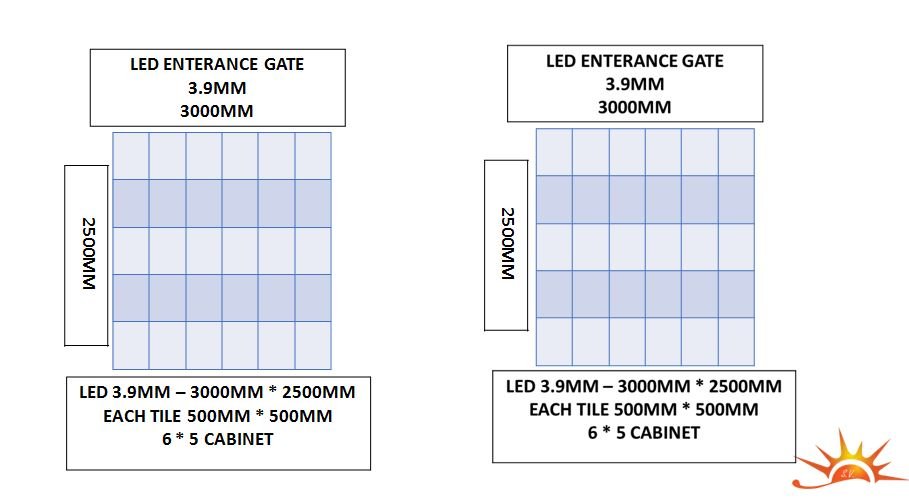

SIDE LED – A/B

1.64’ * 1.64’ Each Tile Size in Feet ( Each Tile Weight Approx. 12kg)

500mm * 500mmEach Tile Size in mm.

Pixels per Tile128 * 128

Total LED Size 9.84’ * 8.20’ – in Feet

Total LED Size3000 * 2500 – in mm

Total Tiles used 6 no. in width * 5 no. in height

Total pixels 768 * 640

Total LED Size 9.84’ * 8.20’ – in Feet

Total LED Size3000 * 2500 – in mm

Total Tiles used 6 no. in width * 5 no. in height

Total Pixels 768 * 640

Total LED panels 60 no.

Total weight (Approx. 720 kg)

OTHER EQUIPMENT INSTALLED IN EVENT:-



65” Touch Screen = 1 No,

  1. 40” LED TV with Stand= 5 No,

3.24″ TFT Screen (Samsung) = 8 No.

  1. LED Standee = 4 Nos,a

OUR EFFECT

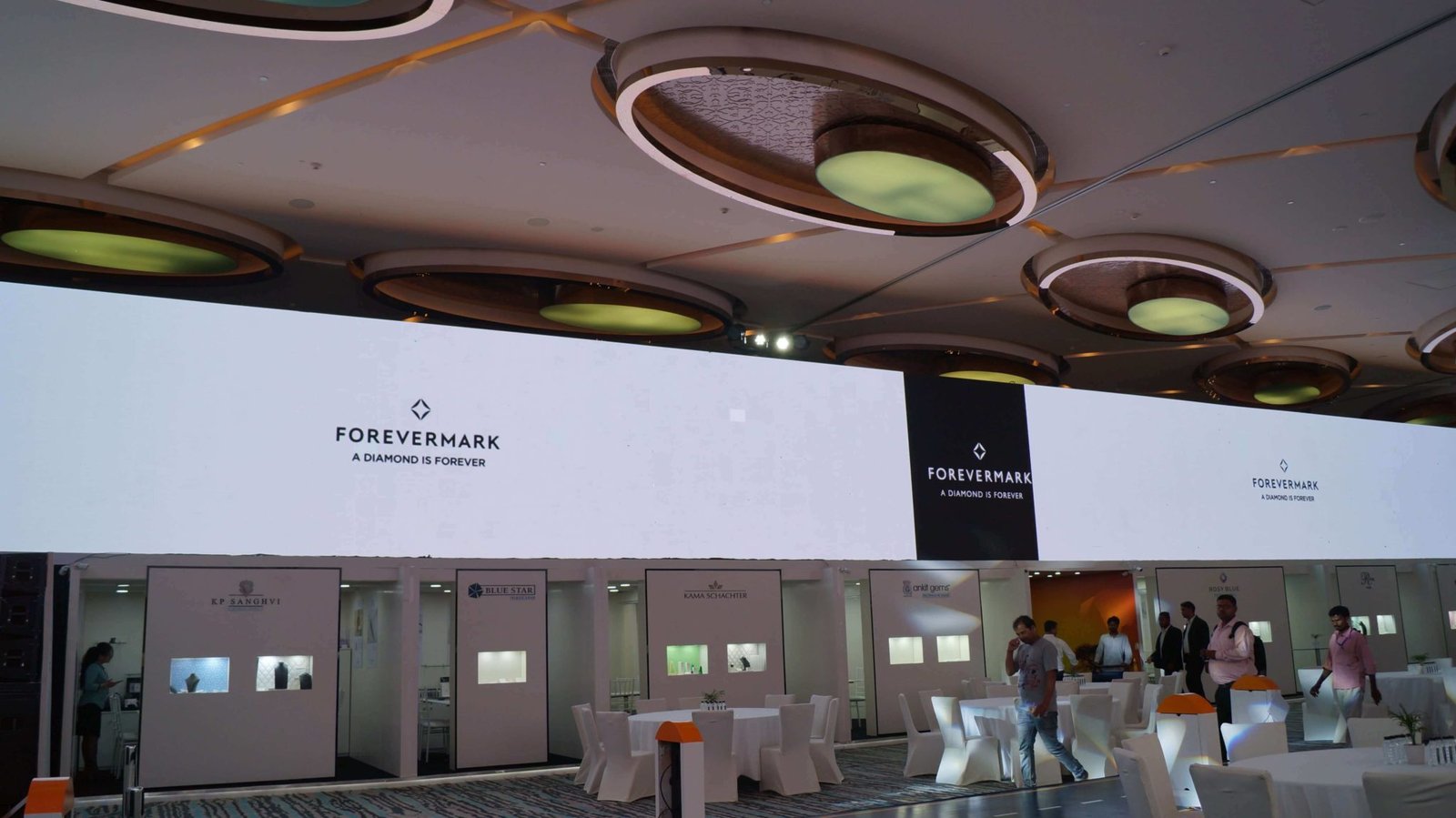

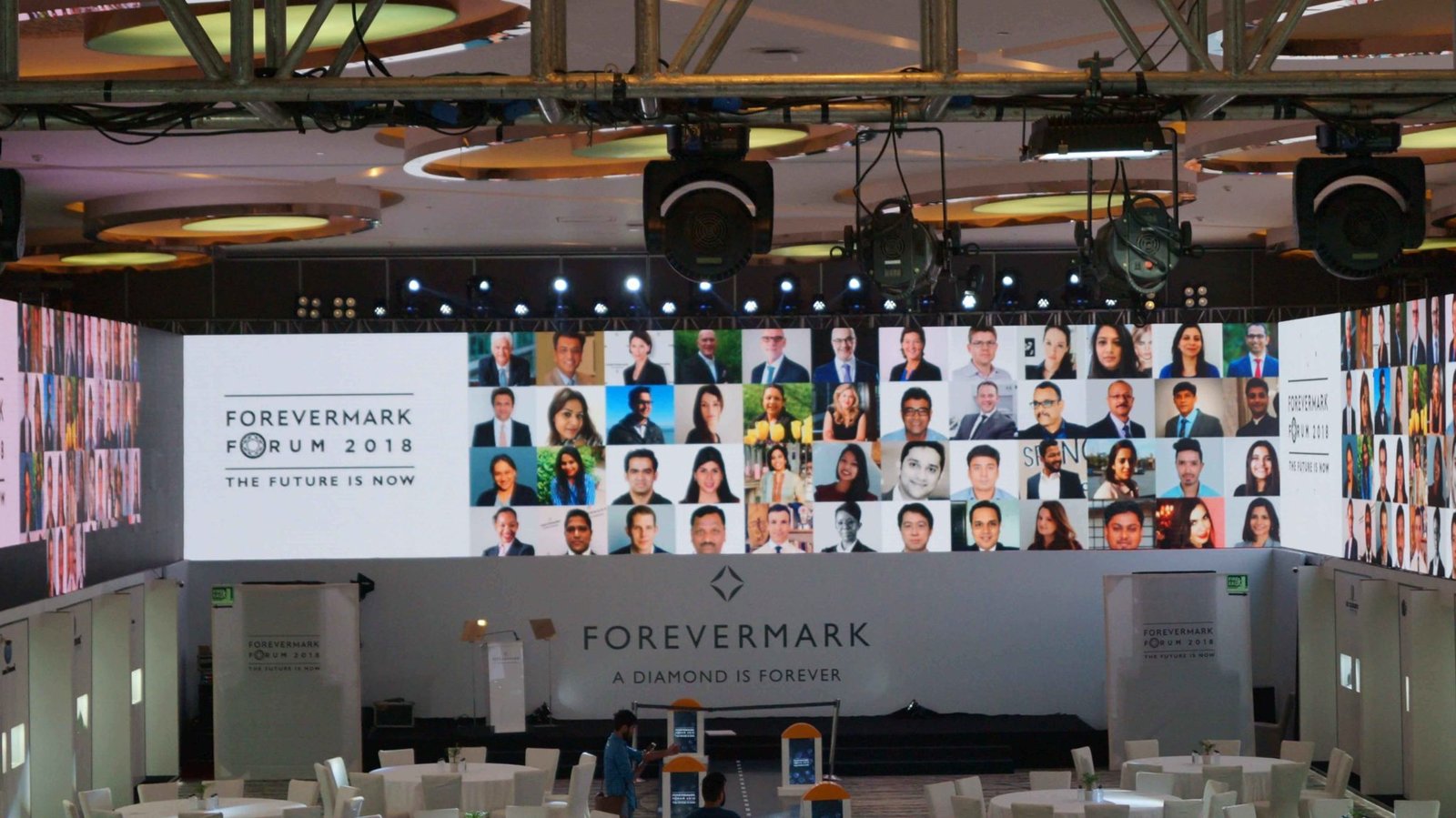

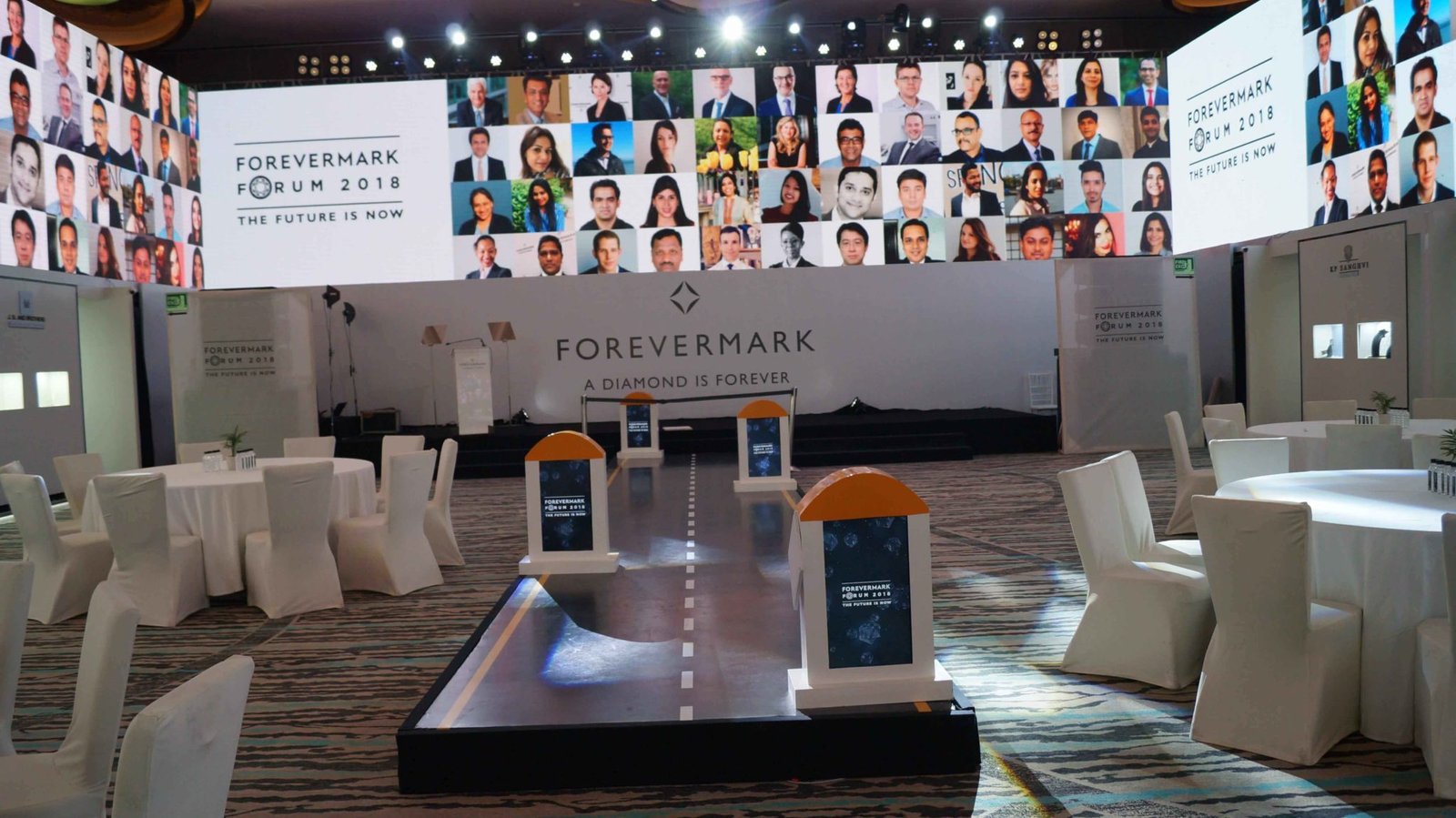

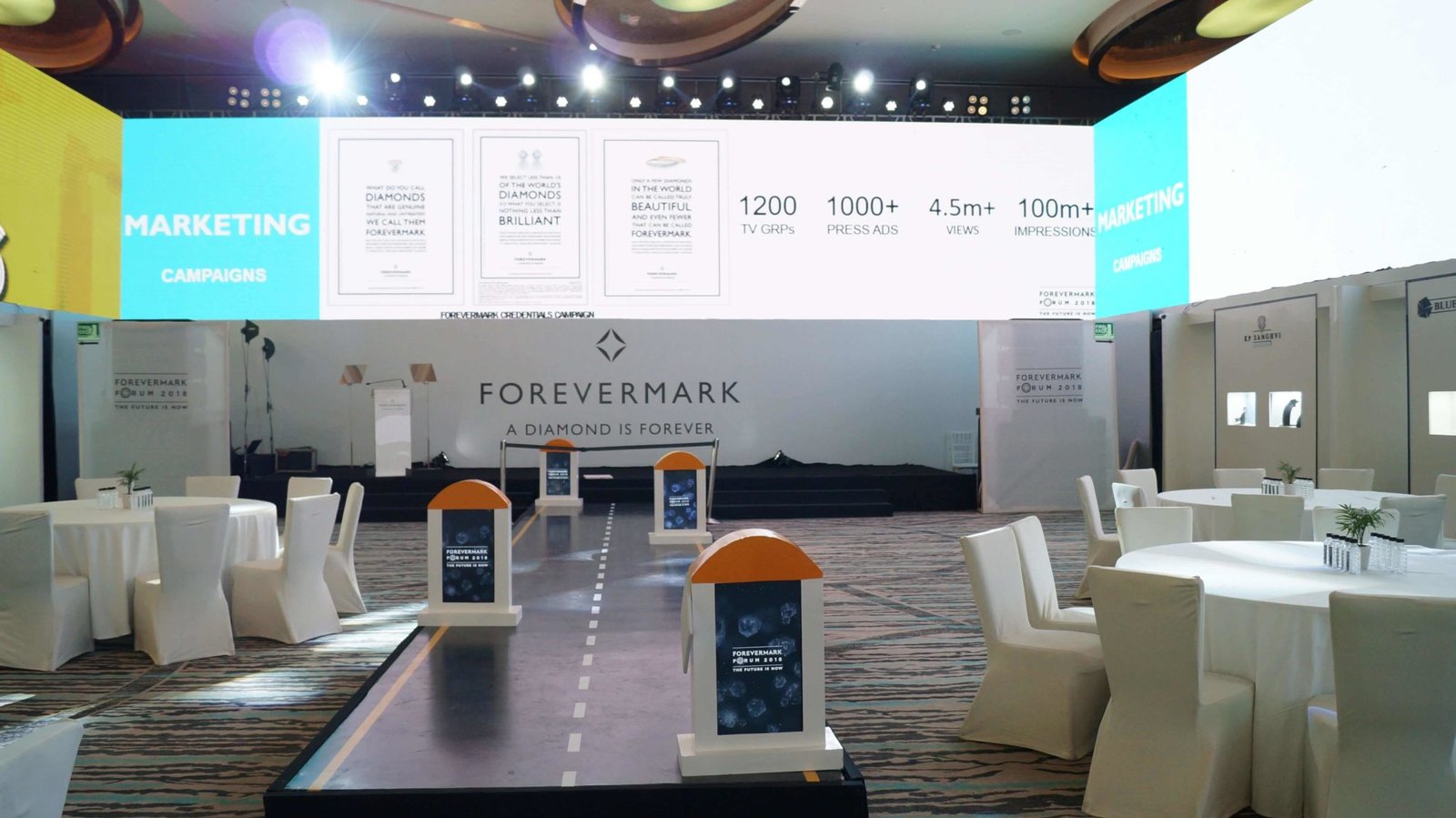

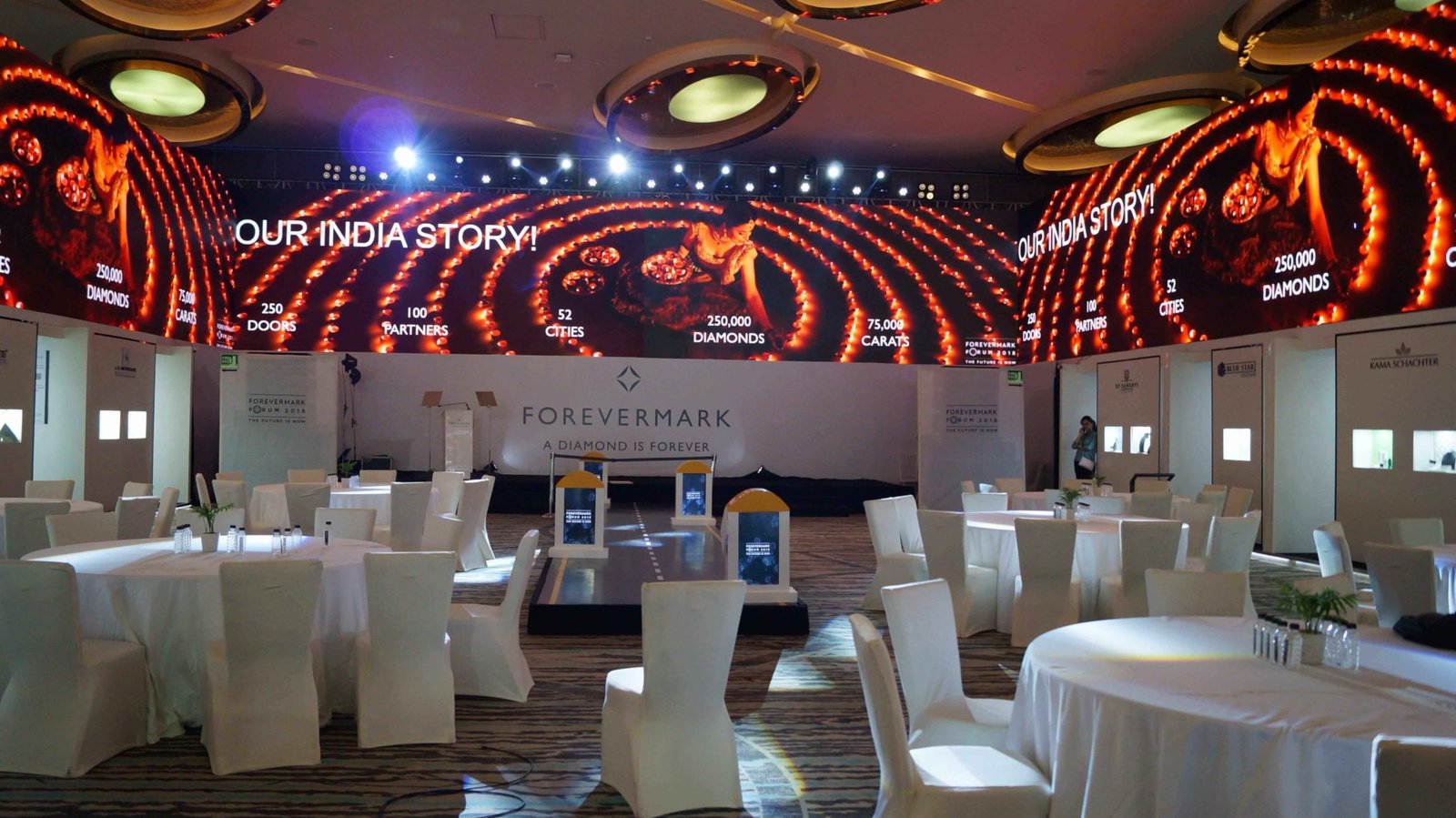

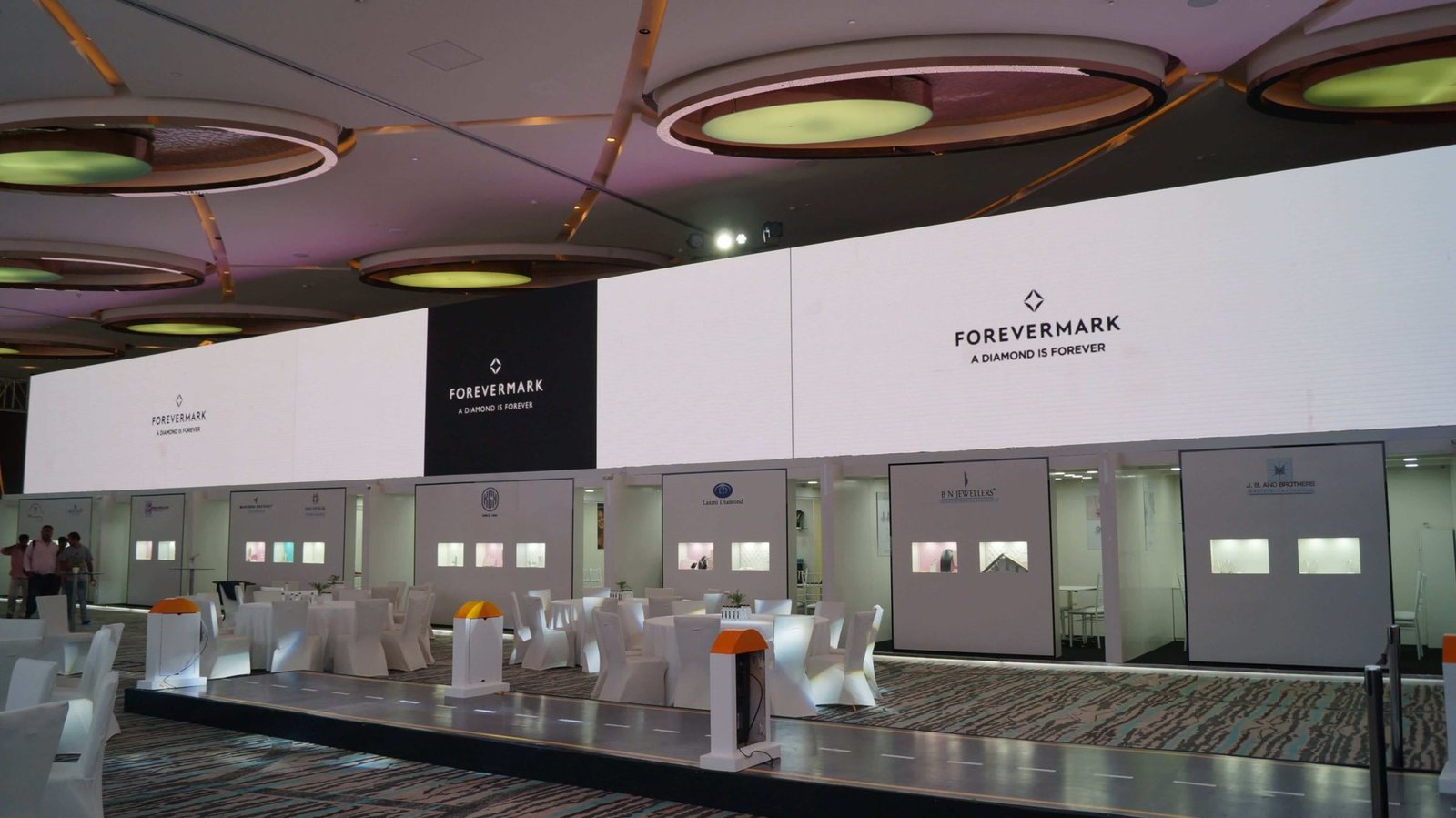

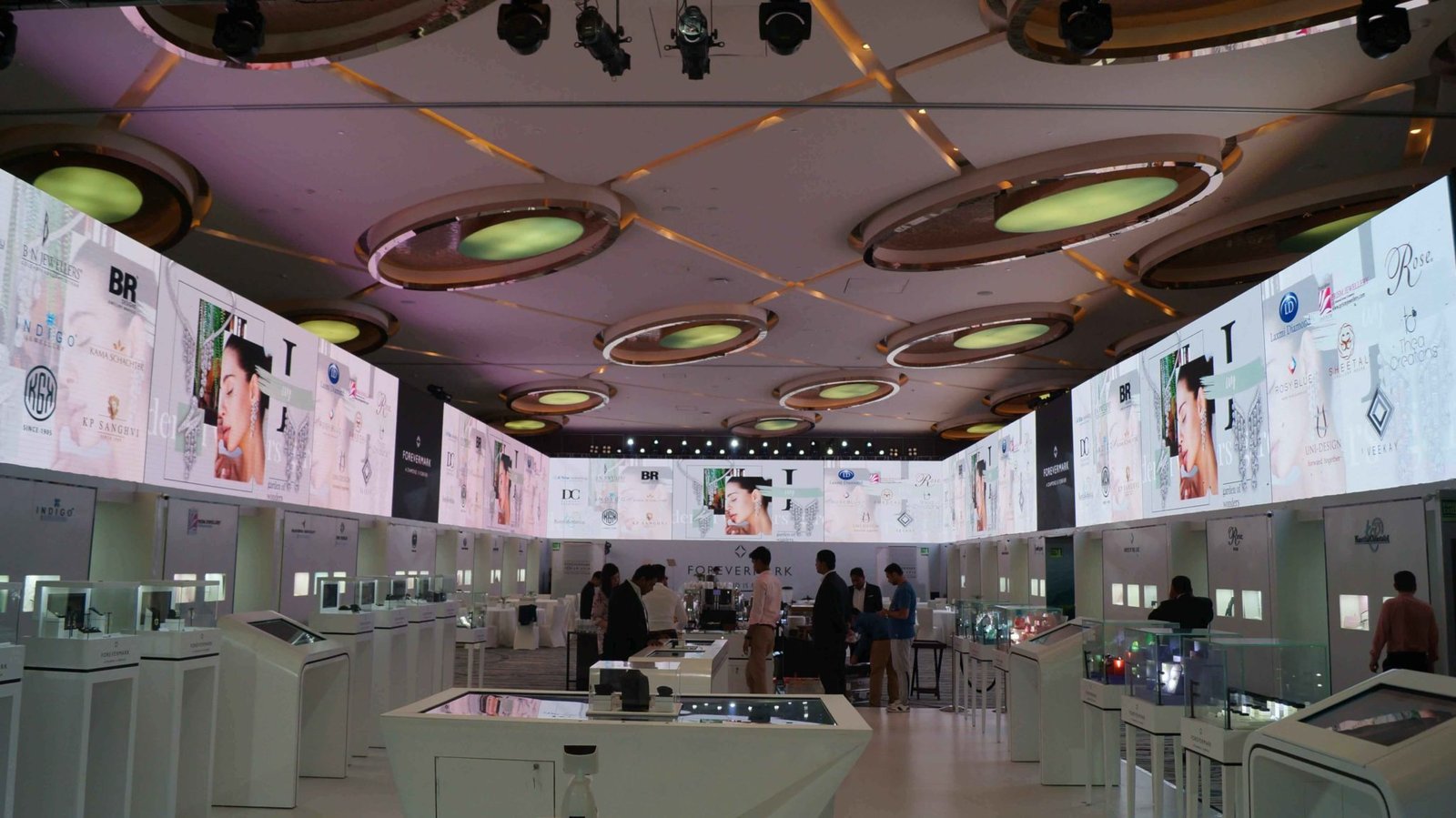

LED Wall
LED Wall
LED Wall
LED Wall
LED Wall
LED Wall
LED Wall

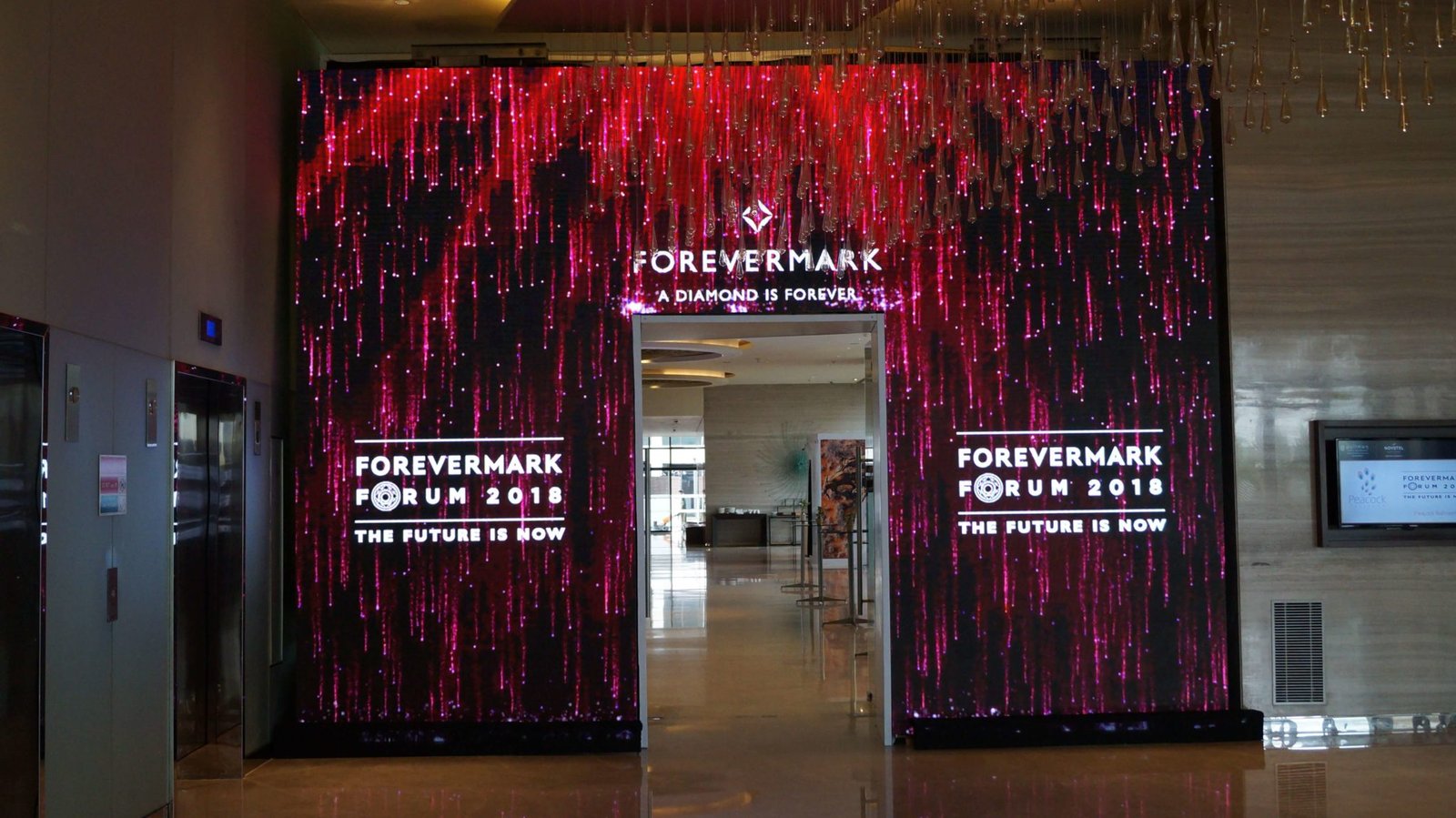

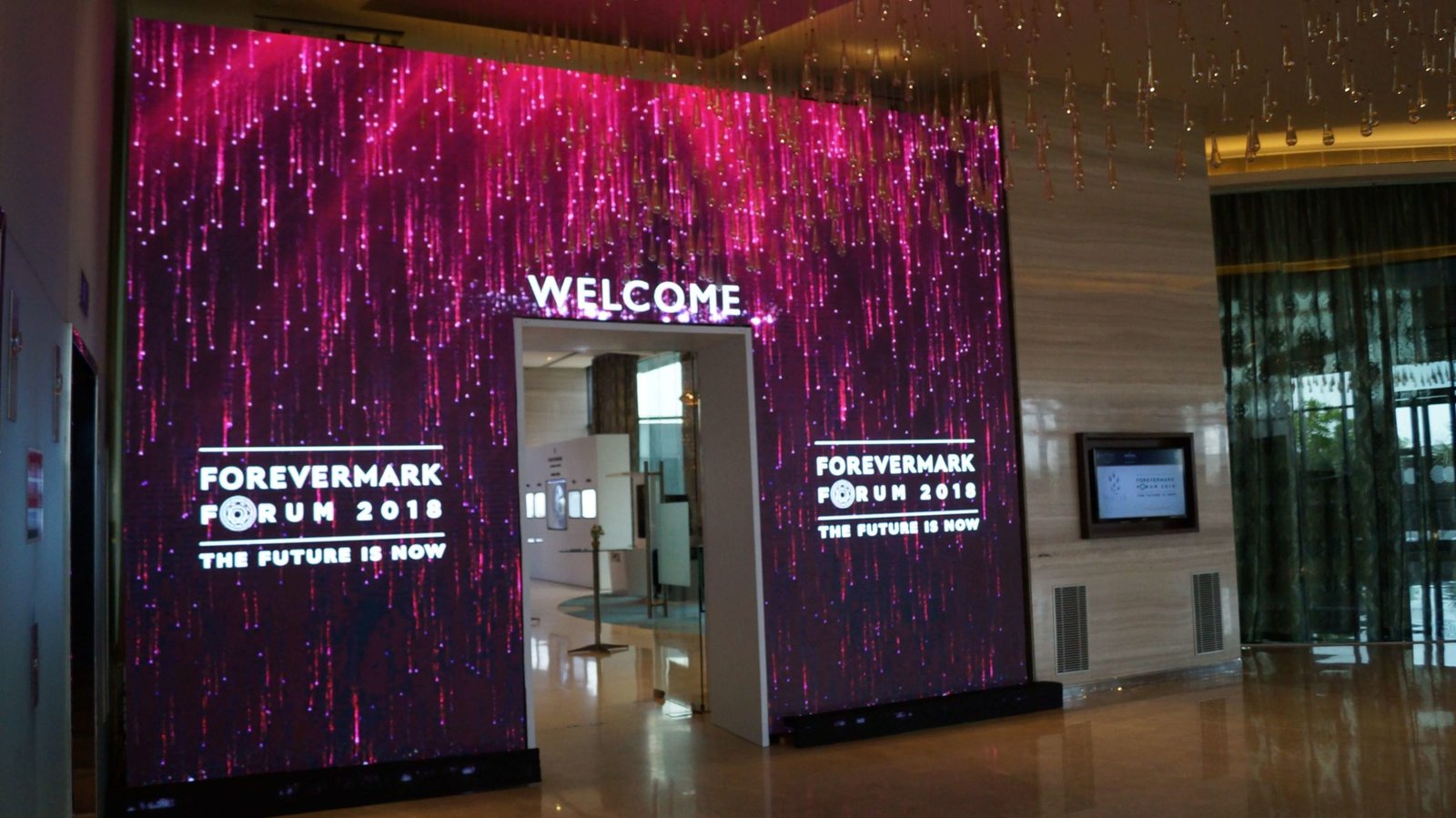

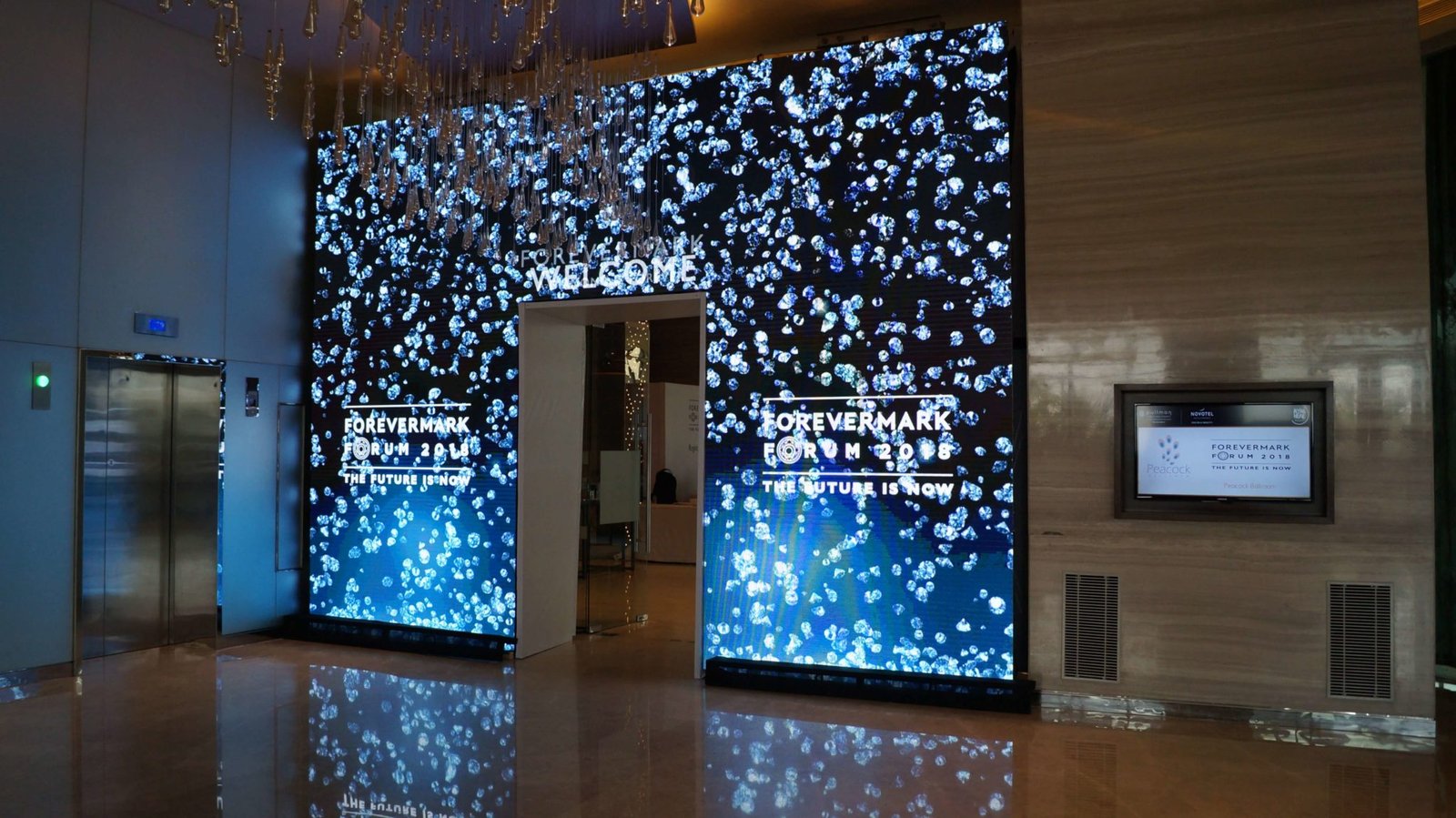

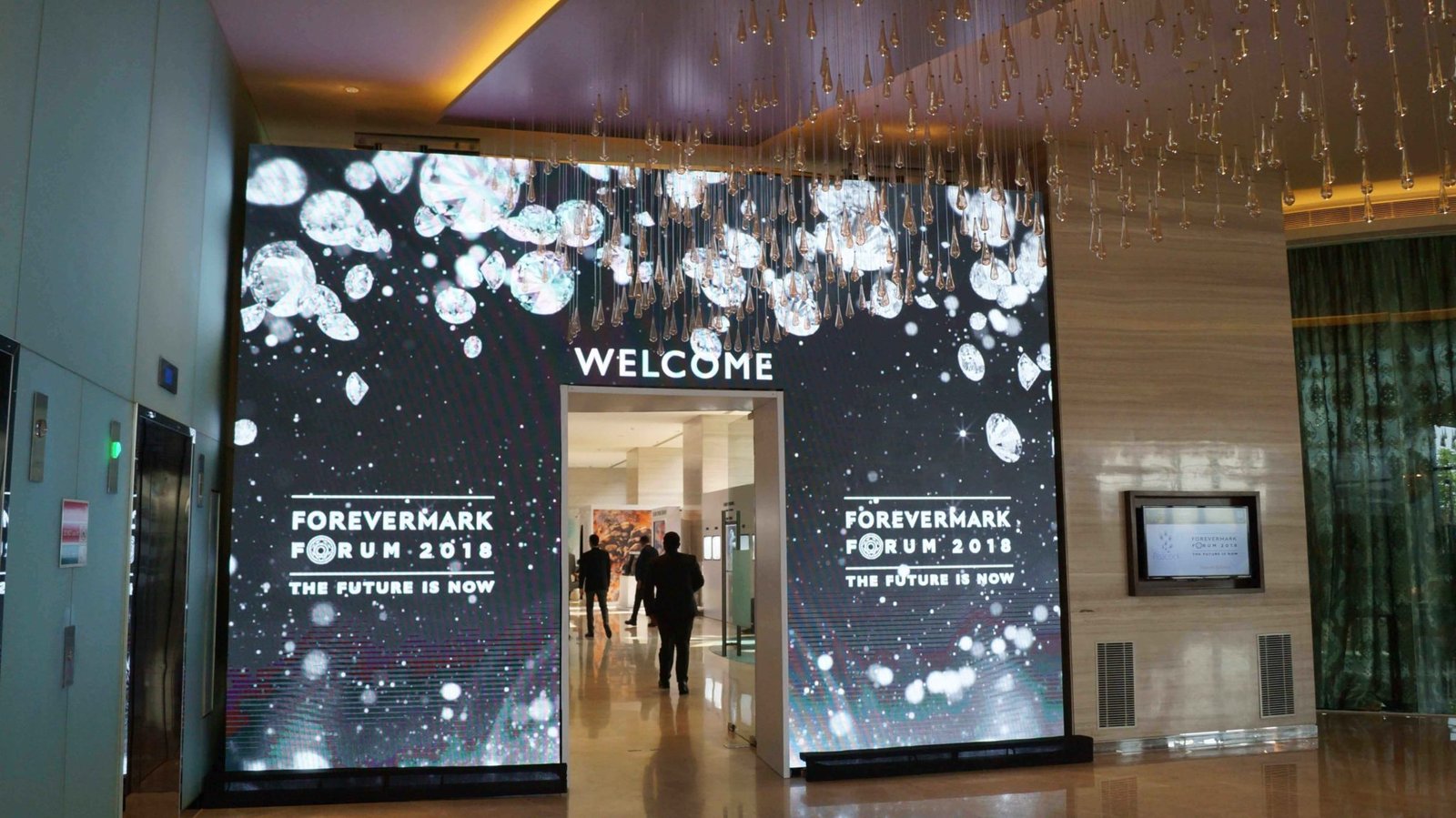

LED Gate
LED Gate
LED Gate

Conclusion

The goal of this very successful event was to provide a wide platform for all its partners to interact, transact and gain new perspective on Forevermark’s growth in context to events within and outside the industry. Partners discussed diversity in thought, culture, design, and innovation in a multi-faceted future brimming with diverse opportunities .In keeping with the current trends of AV Industry , Shivam Video was able to provide a beautiful AV Platform – LED Wall and LED Gate , which was appreciated and loved by all attendees. As a brand that leads the industry by example , Shivam Video has always set new innovative standards in events and exhibitions industry . Contact Shivam Video for any LED Screen & LFD Wall rental need.

LED Gate
LED Gate
