Hybrid Series 2.9 mm LED Wall

HYBRID-SERIES-2.9 mm module-01

Hybrid Series 2.9 mm LED Wall

In stock
  • Pixel Pitch – 2.9 mm
  • Pixel Density – 112,896 pixels/m(square)
  • LED Arrangement – SMD 2121
  • Module Resolution – 84*84 Pixels
  • Module Dimension – 250*250 mm
  • Panel Resolution – 168*168 Pixels
  • Panel Dimension – 500 *500 71 mm
  • Panel Weight – 8.2 Kg
  • Brightness – 800-1000 Nits
  • Max Power Consumption – <400 w/m(square)
  • Average Power Consumption – <135 w/m(square)
  • Visual Viewing Angle – H : 160°/V : 140°
  • Operating Power Source – 100-240 AC   50-60 Hz
  • Refresh Rate – 3840 Hz
  • Protection Rating – IP20
  • Signal Input Source – S-Video, VGA, DVI, HDMI, SDI

Description

  • Corner Protection
  • Magnetic Panel Design
  • Concave & Convex Installation
  • Innovative and Rotatable Curve Lock
  • 500*500 mm Die Casting Aluminium Cabinet

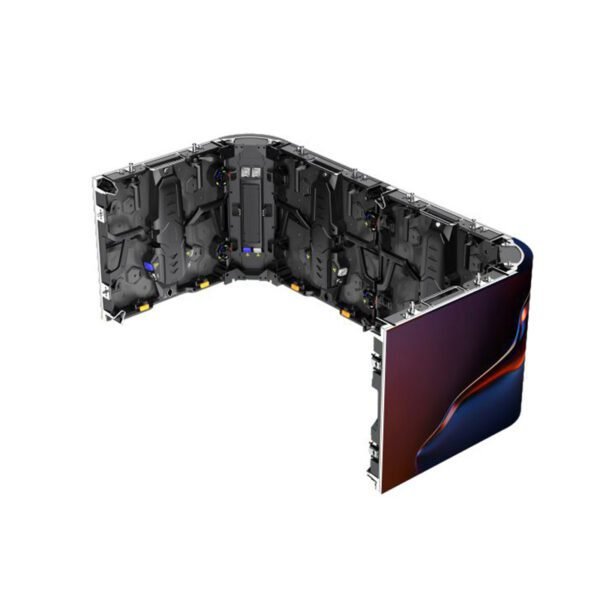

Perfect Corner Solution

HYBRID-SERIES-2.9 mm module-01
